Schneider Intelligent Low Voltage Switchgear
1. High Capacity & Reliable Performance: Supports up to 6300A busbar capacity with strong short-circuit withstand and internal arc protection, ensuring stable and safe power distribution.
2. Flexible Modular Design: Standardized framework with expandable modules enables easy configuration for cable, busbar, and rear access—ideal for diverse applications.
3. Fast Installation & Easy Maintenance: Sliding fishplate connections and tool-free double clamp technology simplify installation, reduce downtime, and lower maintenance costs.
4. Enhanced Safety & Protection: IP20–IP54 protection, insulated busbar systems, and arc fault containment provide superior operator safety and long-term durability.

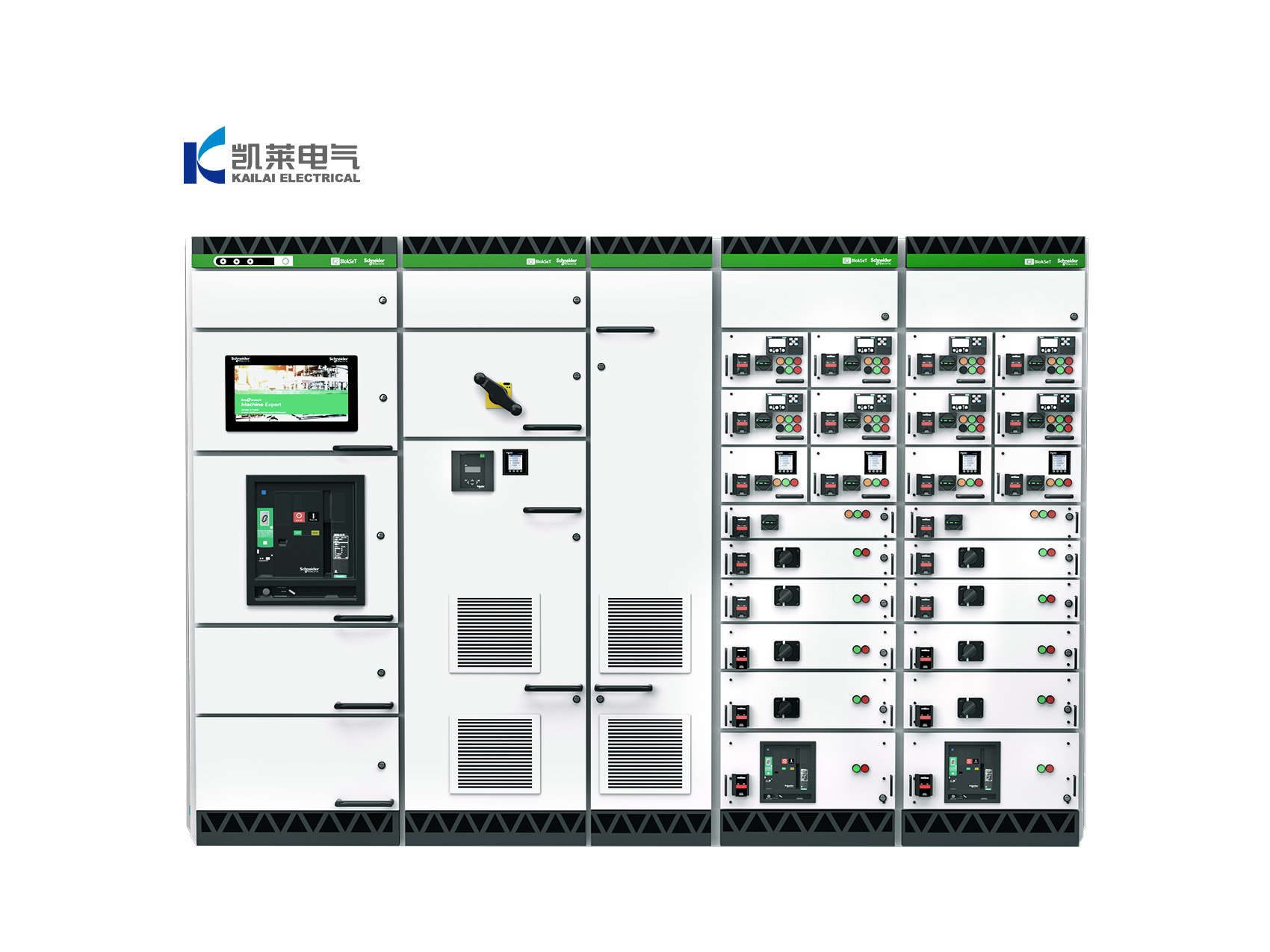

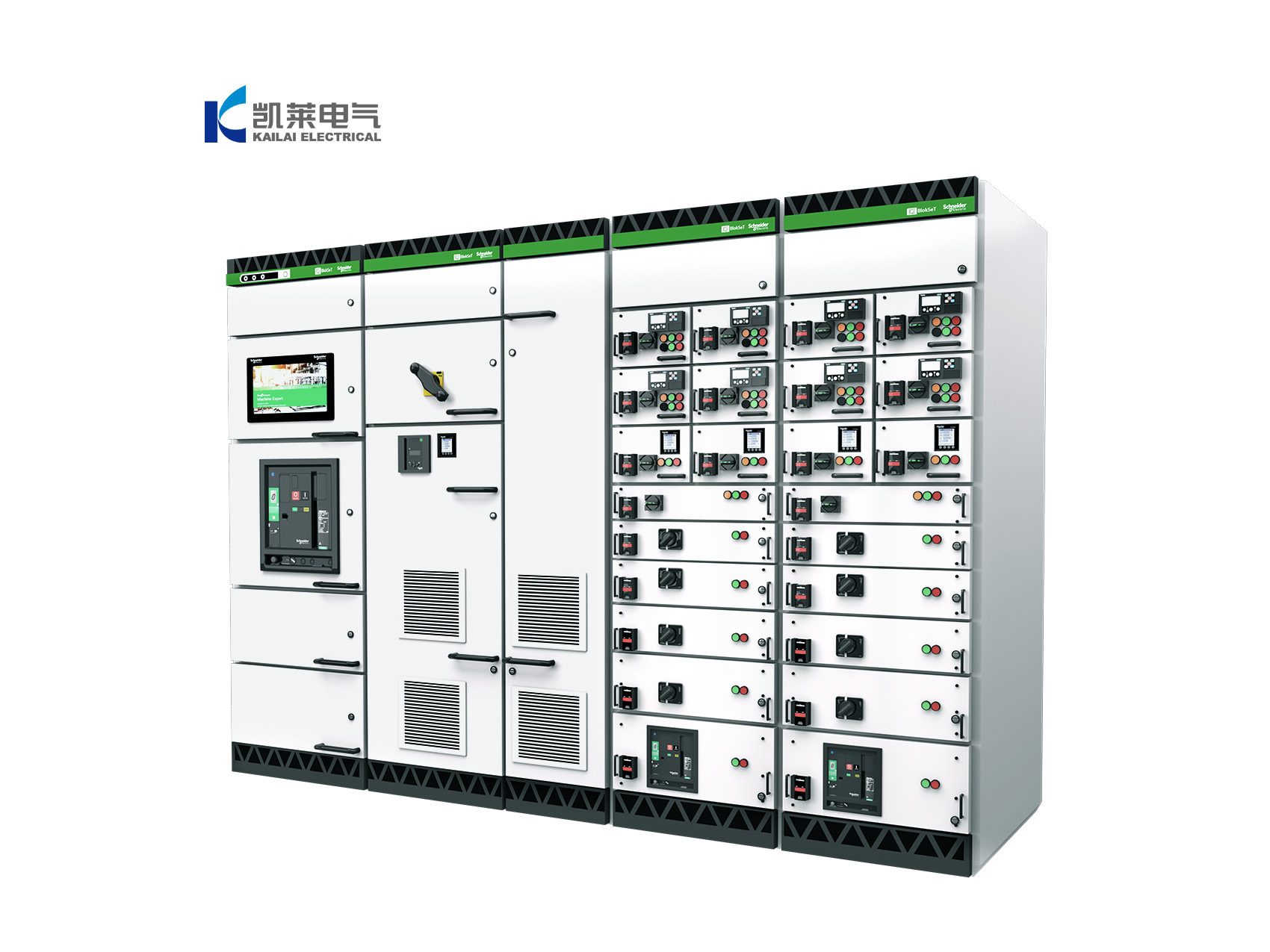

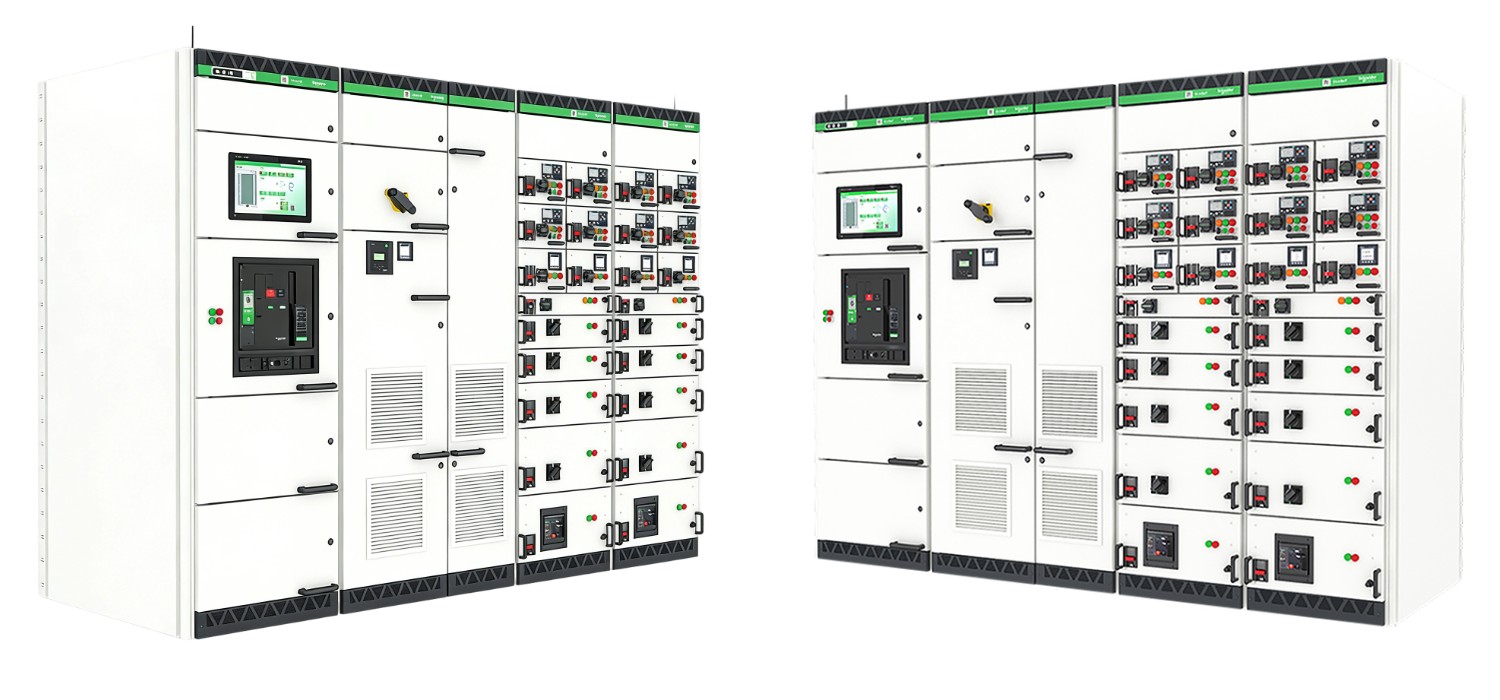

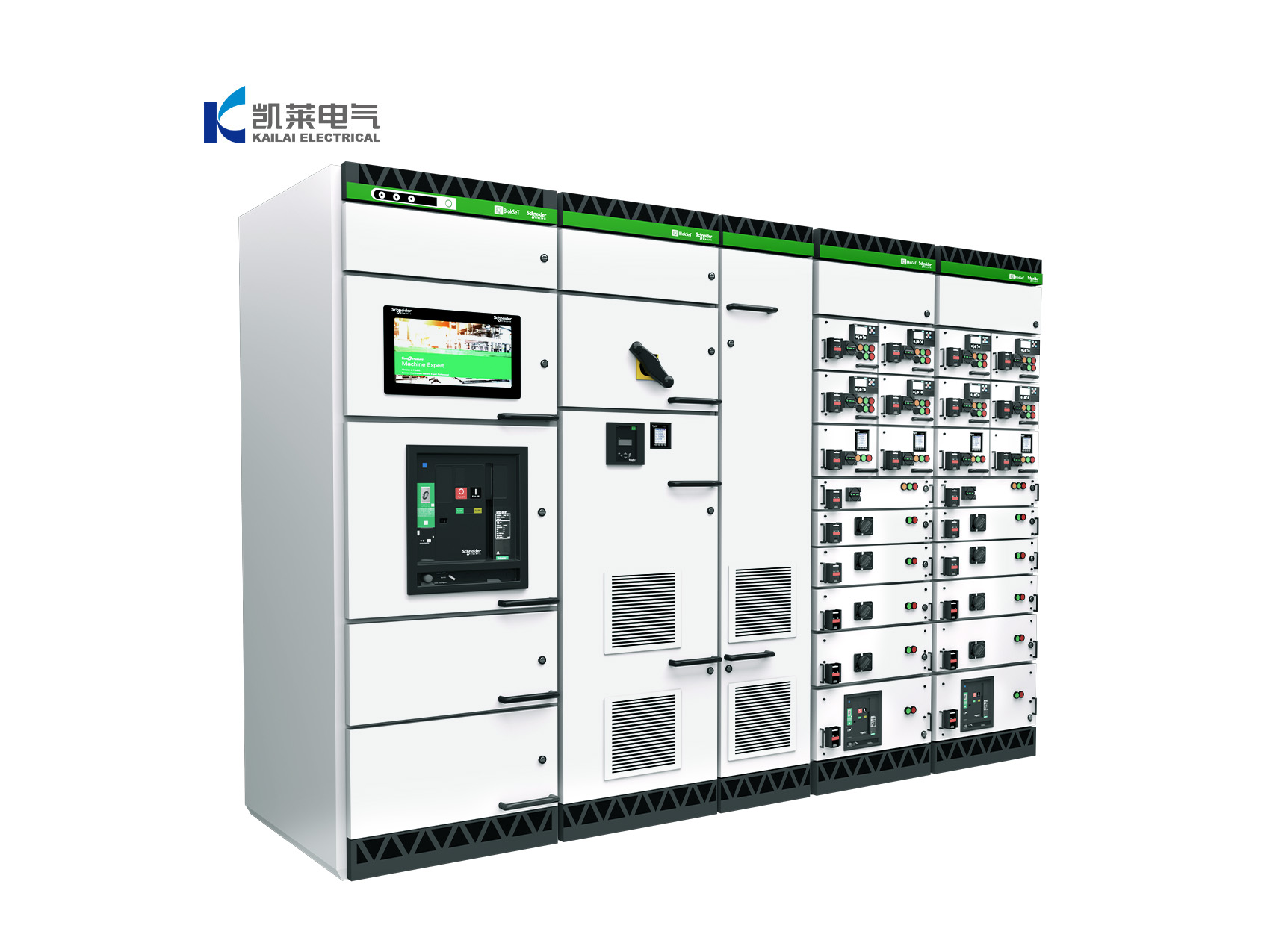

BlokSeT Low Voltage Switchgear System
BlokSeT is a high-quality switchgear system authorized for production by Schneider Electric. It features large capacity, a flexible busbar system, and sliding fishplate connections that simplify on-site installation and maintenance. With enhanced drawer protection levels and reliable internal arc fault containment, it effectively ensures the stability and safety of power distribution systems.
BlokSeT is widely used in various applications, including power systems, data centers, rail transit, healthcare facilities, and commercial buildings. It complies with IEC 61439-2 and GB/T 7251.2-2023 standards.
Advantages and Features
Quick-Connect Fishplate Busbar System
The horizontal busbar connections utilize fishplate technology for hole-free overlapping connections. Pre-installed sliding fishplates allow fast and easy on-site assembly, significantly improving installation efficiency and simplifying panel alignment.
Flexible Modular Framework
The system adopts standardized base frames with widths of 600/700 mm and a depth of 600 mm. Side extensions of 200 mm or 400 mm can be added for cable compartments or vertical busbar sections, while a 400 mm rear extension supports rear cable خروج. This modular design ensures high flexibility and standardization.
Double Clamp Connection Technology
Functional units connect to the vertical busbars using a double-clamp system that requires no tools. The self-compensating material increases clamping force as current rises, ensuring stable connections under varying operational stress. All insertion and withdrawal operations act on the clamps, eliminating wear on the vertical busbars.
Standardized Busbar Thickness
The system uses a unique 5 mm thick main busbar, ensuring a high degree of standardization. Horizontal busbars can be configured as a single system (up to 4000 A) or a double system (up to 6300 A).
Insulated Vertical Busbar Grille
A highly visible red insulating grille with IP20 protection is installed in front of the vertical busbars to indicate live areas. The double clamps are also insulated, providing enhanced safety for operators.
Comb-Type Busbar Clamps
Both main and vertical busbars are secured using specialized comb-type clamps supported by alloy fixtures. This design ensures easy installation and high mechanical strength.
General Data
| Item | Specification |
Application | Power distribution / Motor control |
Service Index (IS) | 211 to 333 |
Standards | IEC 60439-1 / IEC 60529 / IEC 61641 |
Climate Resistance | Humidity: IEC 60068-2-30 |
Dry heat: IEC 60068-2-2 | |
Cold: IEC 60068-2-1 | |
Salt spray: IEC 60068-2-11 | |
Installation | Indoor |
EMC | Class 2 |
Mechanical Data
| Item | Specification |
Cable Entry | Top / Bottom |
Wiring Access | Front / Rear |
Protection Degree | IP20–IP54 |
Form of Separation | 2b / 3b / 4a / 4b |
Connection Type | FFD / WFD / WFW / WWW |
Dimensions (mm) | Height: 2200 |
Width: 500–1200 | |
Depth: 400 / 600 / 1000 | |
Average Weight | 650 kg |
Enclosure | Epoxy powder coating > 50 µm |
Frame | Galvanized |
Color | RAL9002 / RAL7016 |
Electrical Data
| Item | Specification |
Rated Insulation Voltage (Ui) | 1000 V |
Rated Operating Voltage (Ue) | 400 / 690 V AC |
Frequency | 50 / 60 Hz |
Rated Impulse Voltage (Uimp) | 12 kV |
Auxiliary Circuit Voltage | Max. 230 V AC |
Overvoltage Category | IV |
Pollution Degree | 3 |
Busbar Ratings
| Item | Specification |
Horizontal Busbar Current | Up to 6300 A |
Vertical Busbar Current | Up to 3200 A |
Horizontal Busbar:
Short-time withstand current (Icw/1s): 30 / 50 / 85 / 100 kA
Peak withstand current (Ipk): 63 / 105 / 187 / 220 kA
Vertical Busbar:
Short-time withstand current (Icw/1s): 30 / 50 / 85 kA
Peak withstand current (Ipk): 63 / 105 / 178 kA
Safety & System
| Item | Specification |
Internal Arc Protection (IEC 61641) | 85 kA / 0.3 s |
Earthing System | TT / IT / TNS / TNC |
Max Incoming/Outgoing Switch | 6300 A |
Max Motor Capacity | 250 kW |
