SF6 Insulated Ring Main Unit
1. Fully Sealed & Maintenance-Free: Stainless steel gas tank design ensures safe, reliable, and maintenance-free operation.
2. Compact & Modular Design: Space-saving structure with flexible configuration and easy expansion.
3. Reliable in Harsh Environments: Stable performance unaffected by dust, humidity, or external conditions.
4. Advanced Technology & Long Lifespan: Precision manufacturing with <0.01% leakage rate and 30+ years service life.

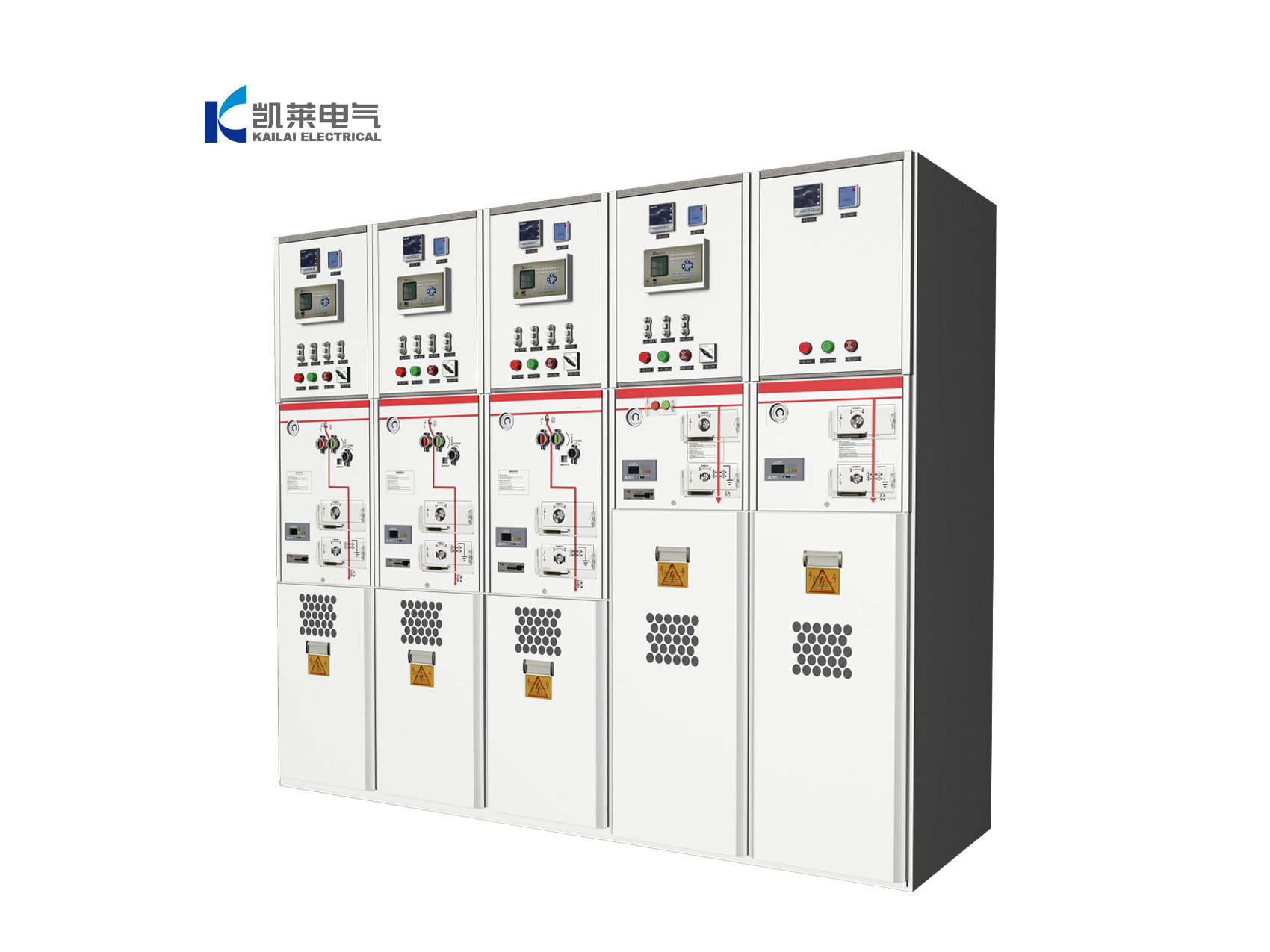

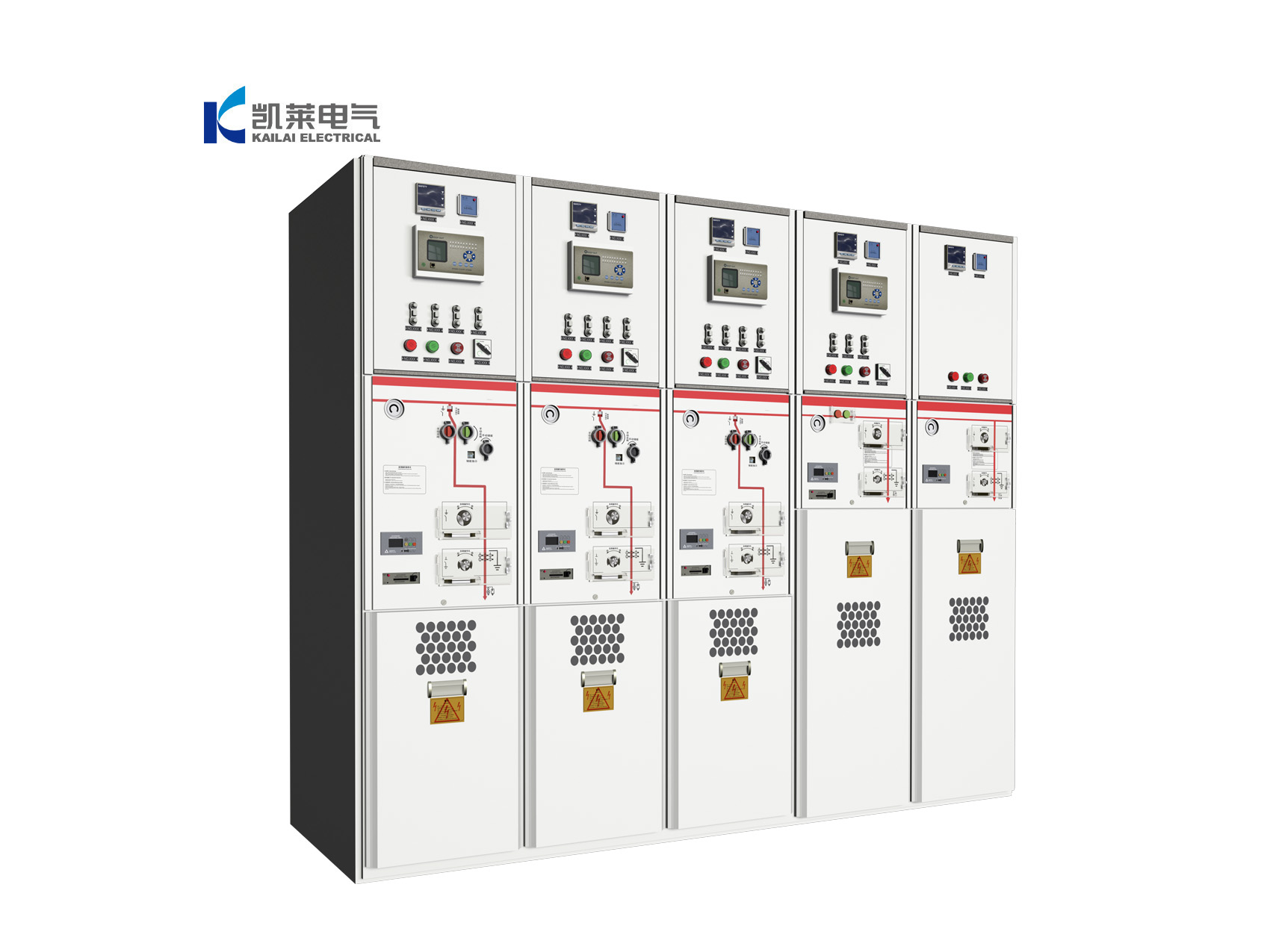

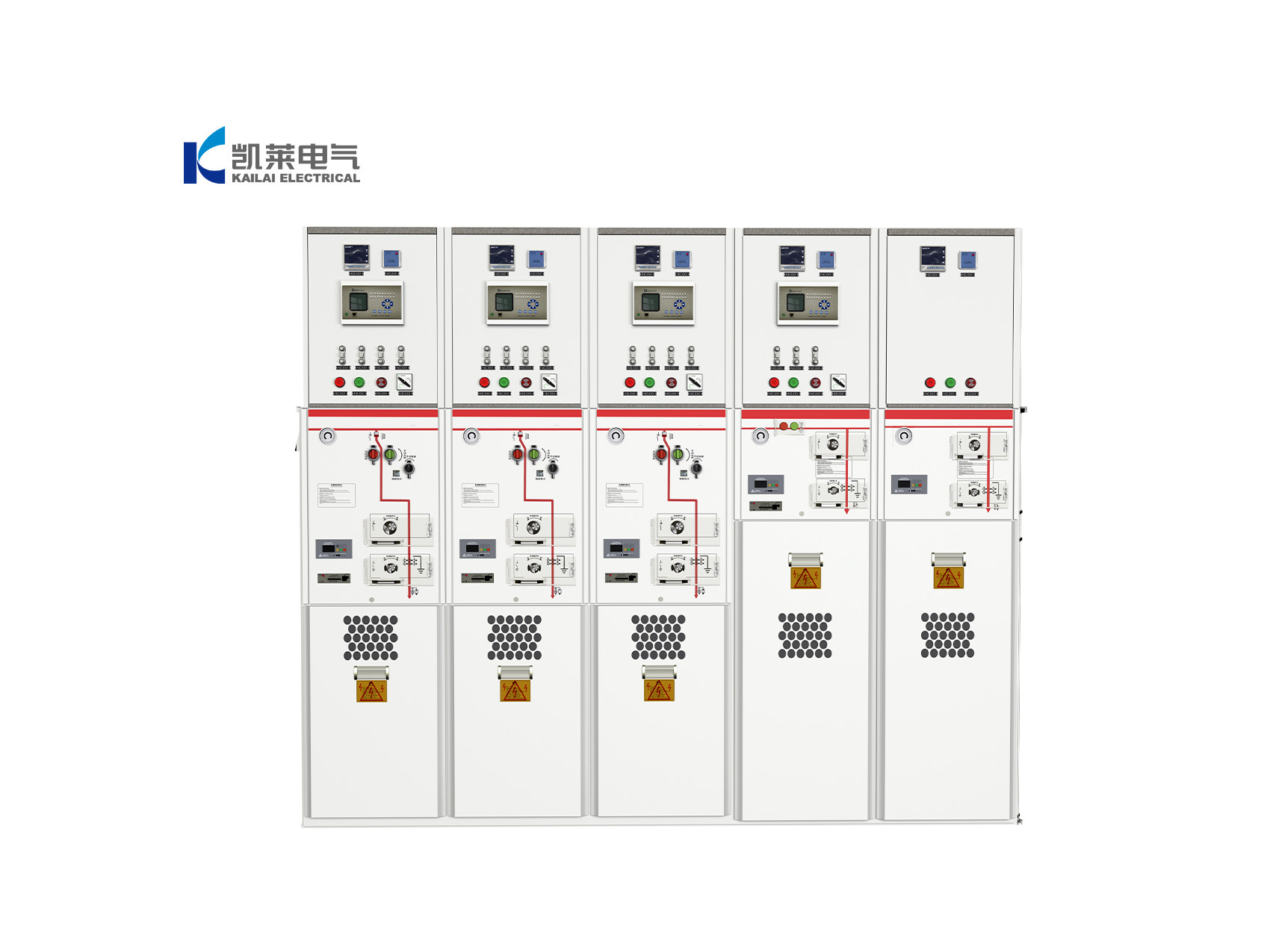

KLM-12 Series SF₆ Fully Insulated Gas-Insulated Ring Main Unit (RMU)
The KLM-12 series SF₆ fully insulated gas-insulated ring main unit (hereinafter referred to as RMU) is a new generation 12kV gas-insulated RMU independently developed by introducing advanced technical concepts and leading manufacturing processes.
The product features compact size, maintenance-free operation, simple handling, high safety and reliability, and excellent performance. It is especially suitable for urban power grid renovation, industrial substations, load centers, high-rise buildings, outdoor switching stations, and pad-mounted substations.
Compact, maintenance-free, and easy to operate.
The primary system is not affected by environmental conditions and can operate reliably in harsh environments.
Modular design allows flexible arrangement and expansion according to project requirements.
Advantages & Features
All primary high-voltage live components are fully sealed in a stainless steel gas tank welded from stainless steel plates. The entire switchgear is unaffected by external environmental conditions, ensuring operational reliability, personnel safety, and maintenance-free performance.
The extension busbar is fully insulated and shielded, ensuring high reliability and safety.
The load switch–fuse combination unit has a transfer current up to 12kV, 1400A.
Compact structure, suitable for installation in space-limited areas. The gas tank is made of 3 mm thick 304 stainless steel and welded using advanced 3D five-axis laser welding technology, ensuring superior welding quality, excellent airtightness, and an attractive appearance.
Simple and effective interlocking system prevents misoperation.
Factory-integrated automation solutions are available to enable intelligent switchgear functionality.
Fully automatic helium leak detection equipment ensures a gas leakage rate of less than 0.01% per year, with a service life exceeding 30 years.
Reliable operating mechanism: the mechanical life of the load switch reaches up to 2,000 operations, while the vacuum circuit breaker reaches up to 5,000 operations.
Fully automated assembly line ensures product consistency and high quality.
Basic Parameters
| Item | Unit | C Module | F Module | V Module | C Module (Isolating/Earthing) | CB Module | CB Module (Isolating/Earthing) |
Load Switch | Combined Unit | Vacuum Switch | Isolating/Earthing Switch | Vacuum Circuit Breaker | Isolating/Earthing Switch | ||
Rated Voltage | kV | 12 | 12 | 12 | 12 | 12 | 12 |
Rated Frequency | Hz | 50 | 50 | 50 | 50 | 50 | 50 |
Power Frequency Withstand Voltage (phase-phase, phase-ground / across isolating distance) | kV | 42/48 | 42/48 | 42/48 | 42/48 | 42/48 | 42/48 |
Lightning Impulse Withstand Voltage | kV | 75/85 | 75/85 | 75/85 | 75/85 | 75/85 | 75/85 |
Rated Current | A | 630 | Note (1) | 630 | — | 1250/630 | — |
Rated Closed-Loop Breaking Current | A | 630 | — | — | — | — | — |
Rated Cable Charging Breaking Current | A | 10 | — | — | — | — | — |
Rated Short-Circuit Making Current (Peak) | kA | 50 | Note (2) | 50 | 50 | 63 | 63 |
Rated Peak Withstand Current | kA | 50 | — | — | — | — | — |
Rated Short-Time Withstand Current | kA | 20 | — | 20 | 20 | 25 | 25 |
Rated Short-Circuit Breaking Current | kA | — | Note (2) | 20 | — | 25 | — |
Rated Transfer Current | A | — | 1400 | — | — | — | — |
Max. Fuse Current | A | — | 125 | — | — | — | — |
Circuit Resistance | μΩ | ≤300 | ≤300 | ≤150 | — | — | — |
Mechanical Life | operations | 2000 | 2000 | 2000 | 2000 | 5000 | 5000 |
Notes:
(1) Depends on the current rating of the fuse.
(2) Limited by the high-voltage fuse.
Project Portfolio
Operating across over 20 countries and regions, we provide complete sets of medium and low voltage electrical switchgear for various construction projects. We adhere to the principle of “Expert Manufacturing, Customer-Focused Service,” and uphold values of honesty, innovation, safety, and mutual success, striving to serve global clients with superior solutions.
About Us

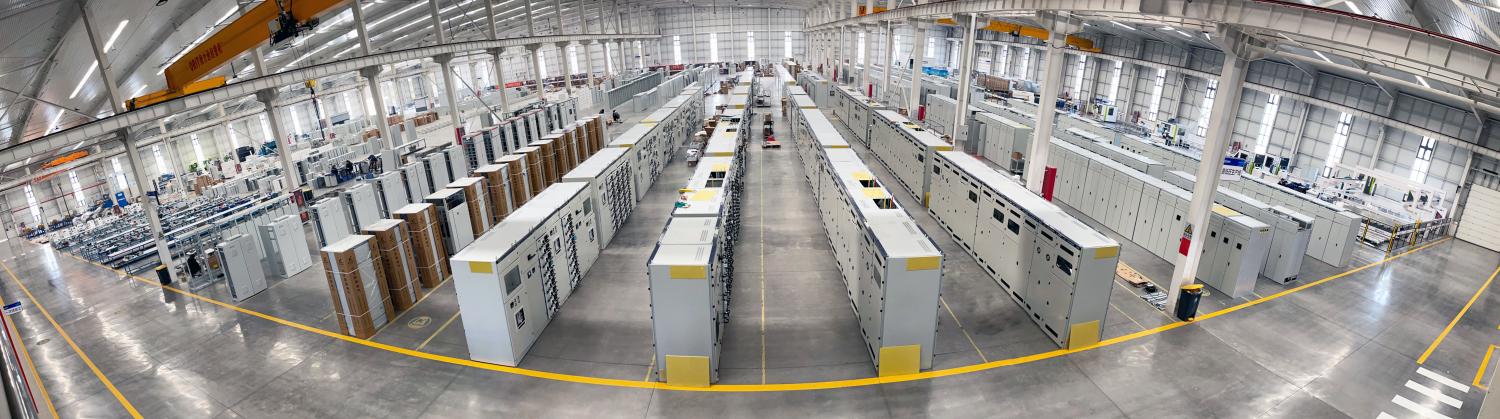

With 36,000 square meters of manufacturing space and 200 committed staff, we focus on the development, production, and sales of 0.22kV–35kV medium and low voltage switchgear, as well as electrical engineering installation and upgrades. Our solutions are widely applied in industrial, commercial, real estate, sports venues, and medical sectors, ensuring efficient production and rigorous quality inspection.
Product Showcase
Staff Showcase

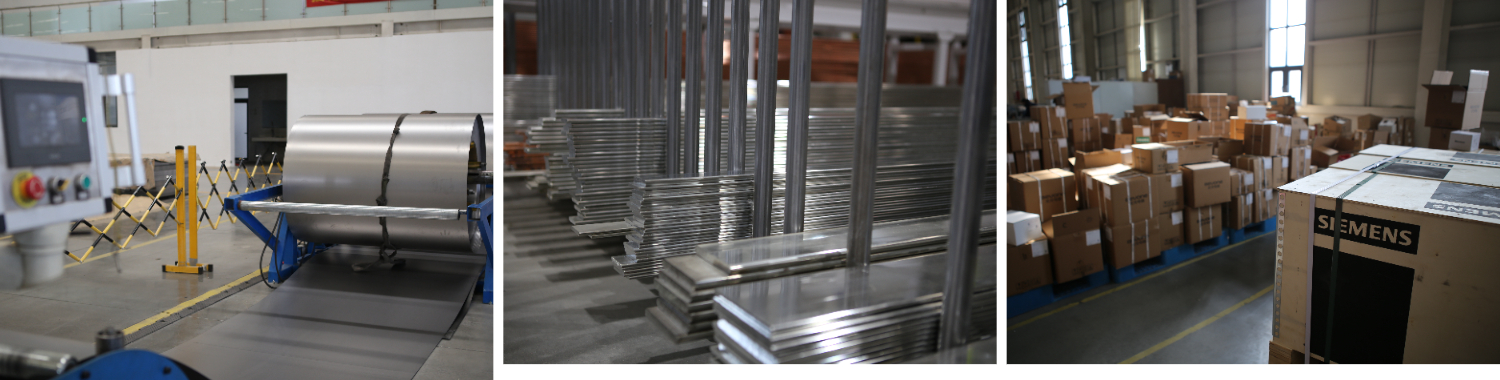

Raw Material Overview
